Mini Kapanadze resonator - 12V LEDs Lamp with only HV at 4.5 - 100% light

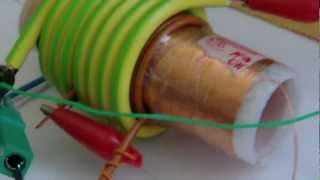

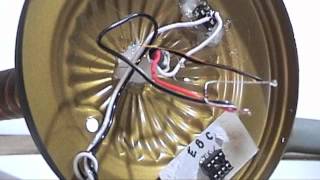

HW: 1. flyback driver (NE555+TIP122 on AL cooler, adjustable frequency) 2. flyback from old crt monitor 3. spark-gap (gap=1 mm, if you set more, more noise you get, but less power !!) 4. tesla-kapa coil (3 windings, in this video is setup only HV coil and output coil, but all coils are grounded) With 4 ferrite rings inside(from old power supply and filter coils) 5. load (small 12V 18LEDs 2W) 6. input (I used small transformer, 3V 110mA and 4.5 V 190mA) Result: at f = 72.2 KHz 1. with 3V light up this lamp at 50 % 2. with 4.5V light up this lamp at 100 % Originally is a LEDs lamp designed at 12V to lightup. If you have 9V, than its not enough to light up a lamp Schematic diagram and much more here: http://library.open-energy.ws/directory/mrstanlez/2012
