Balya Yükleme Makinesi ve Sıra Bağımsız Silaj Makinesi Performans Filmleri

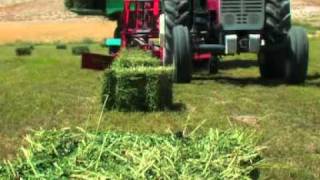

Carrier Bale Picker Loader Machine is designed for picking the bales prepared and left on land by bale machınes and loading them to directly to a trailer, a lorry or a truck. Bale Loading Machine that was designed to save time and labor has daily 2500-3000 bale loading capacity patented by ÇELIKEL The machine has hydraulic system; this allows stowing bale up to 430 cm height. You will be able to align the bales in layers. All bales whatever side and position with two or three strings can be taken through the leading system on the machine. Therefore, there is no need in any person to lead or amend bales. The machine transfers the bales through holding chains, carrier chain transfers he bale to the farthest point of a trailer. The machine is connected to a tractor by drawbar system and can take position pursuant to work and road situation. Chain system specially chosen and preferred by Çelikel is so durable and long lasting system which doesn’t need any extra maintenance but lubricating. Chains are used for picking up the bale and loading to a trailer. Chain system includes 4 different chains. 2 of them taker and 2 of them loader. Taker chains give the bales to loader chains. Then loader chains transfer the bales to a trailer, a truck or a lorry. While designing the machine, Çelikel mainly considered the bale traders having big load and shipment quantity/capacity of bales instead of individual user for their own needs. So, the first criteria is high performance and durability of the machine. Two pcs bale stabilizer system is to prevent any kind of loss on products by eliminating possible damages during picking up and loading process. Carrier simply adjusted to sideways while working and to rear position while transporting it by movable pull system. One user can do this conveniently.CELIKEL adapted hydraulic piston system to Carrier which enables it to work with different kinds of trailers. With this system, carrier can easily reach to high level loading for all kinds of trailers. While Carrier is running, Carrier is exposed to some force and load burden because of loading and picking up the bales. Not to have any problem or breakdown for these reasons, for Carrier is comprised of strong bearings and gears made of specially designed steel. These gears and bearings are user friendly products which do not need any extra maintenance other than lubricating. Till 2012, after detailed research and development, Carrier could load the bales only to trailers; now it can load bales to any kinds of carriage vehicles on the side ways such as trailers, lorries, trucks with new system equipment mounted on the Carrier. After mounting the truck equipment, you can adjust the tire extension for left-right ways by loosening the nuts to balance the machine. This system is designed for hard and rugged land conditions to prevent possible turnovers. Carrier specially designed for long years of using without any extra maintenance cost except for simple routine care and maintenances.Carrier specially designed for long years of using without any extra maintenance cost except for simple routine care and maintenances.Carrier specially designed for long years of using without any extra maintenance cost except for simple routine care and maintenances.Carrier specially designed for long years of using without any extra maintenance cost except for simple routine care and maintenances.Carrier specially designed for long years of using without any extra maintenance cost except for simple routine care and maintenances. For different kinds of trailers and hard land conditions, Carrier has adjustable trailer connector to shorten and to extend the distance.
