WIKI Guide to LUA script setup: KISS FC v1.03 | TBS Unify | Frsky XSR | Taranis X9d+

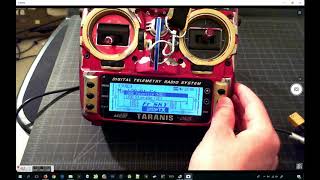

VERY short guide on setting up a KISS v1.03 FC with a TBS Unify Race VTX, Frsky XSR, and Taranis X9D+ remote. There are plenty of video's on how to setup a Betaflight board with the elusive LUA script, OR several video's on the KISS and Tramp, but little to none on KISS+Unify+XSR+X9DPlus. While the setup is straight forward, I just wanted to step through things for those who are having trouble or haven't yet. I also show a few tips and tricks on getting things setup; one specifically being (that i haven't encountered anywhere else) getting the KISS STM32 boot driver to show when there's a conlict with the BF boot driver. If i'm a little to blabby i apologize, and hope it's still informative. I don't go into detail on how to flash the Taranis remote to the latest opentx firmare, but i linked to a setup guide. Requirements (at least for me): Windoze10 KISS v1.03 flight controller KISS firmware 1.3RC30 or greater (according to flyduino Unify was supported since 1.3RC10, but Lua improvements are in RC30 - source: http://kiss.flyduino.net/dwkb/fc-firmware-release-notes/) TBS Unify Pro Race Transmitter (I believe all unify VTXs support smart audio - source: http://www.team-blacksheep.com/shop/cat:fpv_vtx) Taranis X9d+ remote OpenTx 2.2.1 firmware w/ lua, luac options enabled (see Joshuas video below) KISS LUA scripts(source: https://github.com/flyduino/kissfc-tx-lua-scripts/releases) Frsky XSR 00:00 Intro 02:30 KISS discussion start 03:20 KISS settings backup 04:30 KISS STM32 error fix 07:40 KISS Restore Backup 08:45 KISS VTX config 10:00 XSR to KISS connection 10:20 Unify to KISS connection 11:00 Taranis discussion start 12:00 Taranis USB mode 13:20 KISS lua download 16:05 kiSs lua navigation 17:40 Plug in and discover sensors 20:23 Script demo 21:30 VTX channel update demo Links: KISS Downloads http://kiss.flyduino.net/downloads/ Joshua Bardwell: Taranis upgrade playlist: https://www.youtube.com/watch?v=qboy9crfy58&list=PLwoDb7WF6c8kLrGADjuxJUm5M2szXd_j8 SmokeStopper: https://www.youtube.com/watch?v=4z7yRG56aKM Philipp Seidel KISS guides https://blog.seidel-philipp.de/flyduino-kiss-fccc-lua-script-for-pids-settings-and-vtx/ https://blog.seidel-philipp.de/flyduino-kiss-fc-firmware-update-windows-english/ DFuse Demo (KISS firmware flasher) http://www.st.com/content/st_com/en/products/development-tools/software-development-tools/stm32-software-development-tools/stm32-programmers/stsw-stm32080.html# KISS Flyduino flash guide https://kiss.flyduino.net/dwkb/flash-fc-pc/ RotorRiot KISS setup https://www.youtube.com/watch?v=CINwiiDOrY4 Kiss driver: https://github.com/olliw42/storm32bgc/blob/master/firmware%20binaries%20&%20gui/o323bgc-release-v080-v20150613/bin/STM32%20Virtual%20COM%20Port%20Driver/stsw-stm32102/VCP_V1.4.0_Setup.exe?raw=true KISS GUI 2.0.6 for fimeware 1.3: https://github.com/flyduino/kiss-gui/releases KISS Chrome GUI v1.15.6 for firmware 1.2 https://github.com/flyduino/kissfc-chrome-gui/releases/tag/v1.15.6 KISS Chrome GUI v1.14 for firmware 1.1 https://github.com/flyduino/kissfc-chrome-gui/releases/tag/v1.14 OpenTx: http://www.open-tx.org/2017/12/16/opentx-2.2.1 My Rcgroups blog: https://www.rcgroups.com/forums/showthread.php?3057866-Another-KISS-Firmware-Upgrade-fix EZVid used for screen capture
