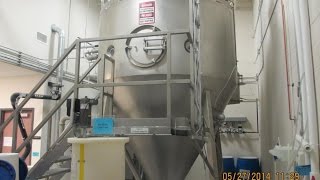

Used- GEA Niro Spray Dryer, Model SD6.3R - stock # 47471001

http://www.aaronequipment.com/usedequipment/dryers-drying-equipment/spray-dryer/niro-sd-63-r-47471001 Used- GEA Niro Spray Dryer, Model SD6.3R, 316 Stainless steel interior, 304 stainless steel exterior. Insulated shell. Drying capacity: 10-55 kg/ hour water evaporation. Chamber approximate 98" diameter x 50" straight side x 89-3/4" straight side cone, has pneumatic hammer system. Gea Niro rotary atomizer, Model FS1, 316 stainless steel housing, wheel 329 stainless steel, oil free for liquid, feed rate = 10,000 - 30,000 rpm, serial# 343, built 2011. Includes cyclone with collection point, blower driven by a 7.5kW (hp), 3/60/460 volt, 3474 rpm motor. (1) Gea Niro Eclipse air heater, direct natural gas, automatic control, 6" burner, rated +24"/-6"WC at 400 degrees C (752 degrees F.), built 2007. Airex Industries dust collector, Model 16-S-8, rated 415 cfm, 304 stainless steel, serial# 07-3524. Control panel with Danfuss drives, temperature controllers, and Honeywell burner control. (1) Watson Marlow feed pump, Model 520N, (1) plastic tank, misc. piping. Mounted on (4) legs with misc. railing and ladder.
