TIPO A31

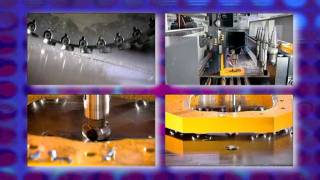

This plasma drill processor is designed for wide plates and is suitable for: Manufacturing of bridges and viaducts Heavy structural steel manufacturers Manufacturers of agricultural and earth moving machinery or mining equipment The main feature of Ficep CNC working centres is to process automatically the largest plates available on the market without thickness limits. The CNC line tipo A 31 and tipo A 16 can carry out in one step the main operations required in the steel construction industry such as drilling, milling, pointing, tapping, marking, scribing and plasma/oxy cutting with the following advantages: Reduced overall dimensions Reduced material handling Unloading the finished parts while the machine processing High processing speed due to carbide drilling and high performance plasma Variety of operations Precision due to the one point zero reference for all operations Productivity Nesting Optimization Portal baty with over-designed frame for the double drill head option. Two independent drilling heads moving on cross guides through balls screw either for the positioning and working drilling axis. Each head has a 19 kW motor, with high speed rotation spindle (3000 RPM). Double tool change system with 6 positions. CNC controlled marking unit with 38 positions. Plasma cutting torch, moving on the same axis of one of the drilling head. Possibility to install also a second thermal cutting torch. CNC controlled double carriage with pinchers to electronically keep the material along the virtual datum line (no physical datum rollers are used) during processing, to accomodate also plates that have very bad side mill edges. Automatic swarf conveyor for the drilling unit. Infeed and outfeed roller conveyors for 6 mt. long plates or longer optionally under request
