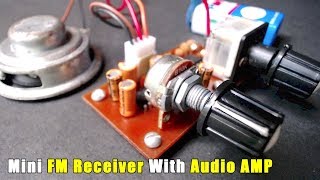

TA2003P Mini FM Receiver With LM386N Audio Amplifier

Components Details : # TA2003P AM/FM Radio IC # LM386N-1 Audio Power Amplifier # 2 x 104PF # 2 x 27PF # 47PF # 103PF # 10PF # AM/FM Tuning Variable Capacitor # 10K Resistor # 4.7E Resistor # 10K Linear Potentiometer # 2.2uF Electrolytic capacitor # 2 x 100uF Electrolytic capacitor # 4.7uF Electrolytic capacitor # 10uF Electrolytic capacitor # 10.7MHz Ceramic Filter (2Pin) # 10.7MHz Ceramic Filter (3Pin) # 4 Pin Relimate Header Connector & Cable # Male Header Connector # 22 AWG Copper Wire # Plastic Shaft With Holder # 2 x 4mm Screws # 2 x Potentiometer Knobs # 9v Battery & Connector # Heat Shrink Tube # 2 Inch 8 Ohm 5W Woofer # Link : PCB layout, Silkscreen, Schematic http://bit.ly/2LfomSO # PCB Making Tutorial Link : https://youtu.be/0OQjboMJwEE Follow Creative Science On : # Google Plus https://goo.gl/r5pHM4 # Facebook https://goo.gl/uSNc7u # Instagram https://goo.gl/WjYnXB # Twitter https://goo.gl/uzFBpR # Pinterest https://goo.gl/N5Twva
