STM32F103 + Lora Ra 01 + Raspberry PI 3 + TheThingsNetwork in 20 minutes

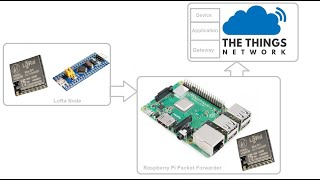

Hello friends. In this video, we will see how to connect Lora node to raspberry pi 3 and then to The Things Network. Here I did not use any Lora shield or Lora hat. Lora module RA 01 (sx1276) is simply interfaced with stm32f103 and Raspberry Pi. Hardware Required: Raspberry Pi3 (https://amzn.to/2RYDlXN) Lora Module Ra 01 (any module with sx1276)(https://amzn.to/2CyU22o). STM32 Blue pill Board (https://amzn.to/2RHHjVC) Connecting wires (https://amzn.to/2RCEd52) Pin Connections: sx1276 Raspberry Pi 3.3V--------------3.3V (header pin #1) GND--------------GND (pin #6) MISO-------------MISO (pin #21) MOSI-------------MOSI (pin #19) SCK---------------CLK (pin #23) NSS---------------GPIO6 (pin #22) DIO0--------------GPIO7 (pin #7) RST----------------GPIO0 (pin #11) Install Single Channel Packer Forwarder 1) install wiringpi library $ sudo apt-get install wiringpi 2) clone repo $ git clone https://github.com/tftelkamp/single_chan_pkt_fwd.git 3) Configure server url $ cd single_chan_pkt_fwd $ nano main.cpp $ change #define SERVER1 "54.72.145.119" to #define SERVER1 "13.66.213.36" $ ctrl+x 4) compile single channel packet forwared $ make 5) run program $ ./single_chan_pkt_fwd Stm32 Code : https://drive.google.com/file/d/16V043tPrXP525Z0oQgVOVxkHdsdILRps/view?usp=sharing
