Scratch with Arduino - Scratch Sensor Board

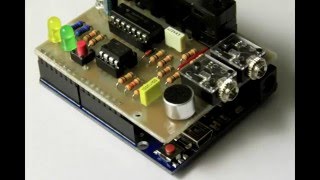

How we realize an electronic device: Scratch Sensor Board - for Scratching with Arduino. Everything starts from the printed circuit. Then "we plant" one by one all the components according to the electronic diagram. FINALLY ... we obtained the desired assembly! Just connect it to Arduino Uno board, everything connects to the computer, start SCRATCH and ... DONE! Have fun to play, and TEST PROGRAM! Sum realizam un montaj electronic: Scratch Sensor Board – pentru programare in Scratch cu Arduino. Totul porneste de la placuta cu circuitul imprimat. Apoi “plantam” una cate una toate componentele, conform schemei electronice (si punem la treaba pistolul de lipit). LA FINAL… am obtinut montajul dorit! E suficient sa il conectam la placa Arduino Uno, totul se conecteaza la calculator, se porneste SCRATCH si… GATA! Spor la JOACA, TESTARE si PROGRAMARE!
