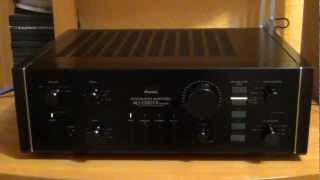

SANSUI AU - D907X Decade

Японский усилитель SANSUI AU-D907X Decade. Год выпуска аппарата 1985. Стоимость на момент выпуска составляла 193,000 йен. Спецификация: Model Integrated DC amplifier The power amplifier: Effective output (10Hz ~ 20kHz, both ch driven) 190W +190 W (6Ω) 160W +160 W (8Ω) Total harmonic distortion (10Hz ~ 20kHz) (8Ω, at the time of an effective output) 0.003% (6Ω, at the time of an effective output 1/2) 0.005% Intermodulation distortion (60Hz: 7kHz = 4:1) (8Ω, at the time of an effective output) 0.003% Output bandwidth (IHF, both ch behavior, THD0.03%) 5Hz ~ 80kHz Damping factor (IHF new, 20Hz ~ 20kHz) 100 (6Ω) Frequency characteristic (1W) DC ~ 300kHz +0-3dB Slew rate ± 300V/μsec (6Ω) Rise time 0.5μsec Equalizer amplifier part: Input Sensitivity / Input Impedance (1kHz) Phono MM: 2.5mV/47kΩ Phono High MC: 2.5mV/100Ω Phono MC Low: 100μV/3.2Ω (adopted MC transformer) Phono MC High: 300μV/40Ω (adopted MC transformer) CD, Tuner, Tape1, 2/PCM, CD Direct: 150mV/47kΩ Maximum permissible input Phono (1kHz, THD 0.01%) MM: 300mV High MC: 300mV MC High: 35mV (transformer type) Ratio SN (A network, a short circuit) Phono MM: 90dB Phono MC: 80dB CD, Tuner, Tape: 110dB General: Rated power consumption (Electrical Appliance and Material Control Law) 370W Physical Dimensions 161 × height 466 × depth 431mm width Weight 26.0kg В ролике звучит: Владимир Кузьмин - Белые дикие кони.
