Review of a constant voltage constant current programmable control power supply module

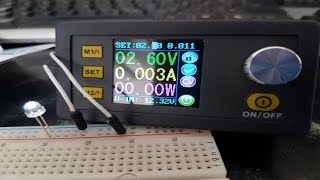

Review of a constant voltage constant current programmable control power supply module. Testing a led with it . To buy it via Aliexpress: http://s.click.aliexpress.com/e/cYkZRXlI DP30V5A Upgraded version DPS3005 Constant Voltage current Step-down Programmable converter Power Supply Ammeter voltmeter Module General Information The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one. Its adjustable output voltage range is 0-32.00V, step by 0.01V. Its adjustable output current range is 0-5.000A, step by 0.001A. This module has power-down stored function and can store 10 groups preset value. And it also has the function of extracting quickly two groups stored value. Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required. LCD display on the module has the function digital voltmeter and ammeter. You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc. on the output state remind area, you can see that output opens or not, the state of constant voltage and constant current, output is normal or not, the key is locked or not, and the current data groups that is being used. On the setting data interface, you can adjust overvoltage value, overcurrent value, over-power value, data set and LCD brightness. This module has many advantages, small size, advanced function, good visual effect, high operability, high-precision, being used independently, being inset into the device and been widely applied. Technical parameters Input voltage range: 6.00-40.00V Output voltage range: 0V-32.00V Output current: 0-5.000A Output power range: 0-160.0W Product Weight: about 113g Product Dimension: 79*43*48(mm) (L*W*H) Open size: 71mm*39mm Output voltage resolution: 0.01V Output current resolution: 0.001A Output Voltage accuracy: ± (0.5% + 1 digits) Output Current accuracy: ± (0.5% + 2 digit) NOTE: You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination. Connection description IN+: Input positive IN-: Input negative: OUT+: Output positive: OUT-: Output negative Note: Input voltage range is DC 6-40V and 40v is the limit voltage; please leave a room to use. Or else it will be burnt. The input must be DC power supply, not AC 220V, or else it will be burnt too. Though this module has reverse connection protection and output short circuit protection, you can muse be in strict accordance with connection description to connect. If you connect the supply power with output, the module will be burnt. feel free to like and share this video if you like this video please subscribe: https://www.youtube.com/channel/UC1_tz9mcSpWdx-ektovx6GQ?sub_confirmation=1
