Reelmatik 600D Full Automatic Spool Winding Line

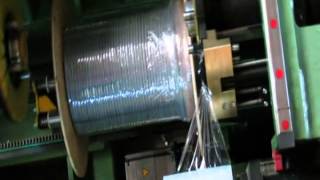

Full automatic Spool Winding Line for PLYWOOD SPOOLS. Feeds the spooler with empty reels. Can take reel with outer dimension from 380 up to 630 mm and height from 300 up to 450 mm. The conveyor length is 4 meters and can take up to 9 empty spools width 450 mm and outer 630 mm. Double head full automatic spool winding unit consist from automated empty spool feeding unit and positioning unit, spool winding head stretch wrapping unit. Available Spool Dimensions; • Spool Outer Diameter: min. 380 mm / max.630 • Spool Barrel Diameter: 120 mm or 250 mm • Spool Inner Hole Diameter: 80 mm • Spool Height: min. 300 mm -- max. 450 mm • Maximum Spool weight: 200 kg Available Spool Material; • Wooden • Ply-wood • Plastic or Metal Cable Data; • 2 x 0.50 mm2 up to 4 x 6.00 mm2 - Flexible • 2 x 1.5 mm2 up to 4 x 4 mm2 - Solid • Diameter of the cables from φ 4.5 mm to φ 16 mm • Flat cables: width 4 to 15 mm and height 4 to 7 mm Line Speed: • Up to 400 meters per minute winding speed • Average line speed 360 meters/min. For 500 meters spool length each spooling period about 90 - 120 second in depending from the cable sizes.
