Record SOLAR flight [6 hours / 200km] RC Plane / FPV / Drone / Aircraft
У вашего броузера проблема в совместимости с HTML5

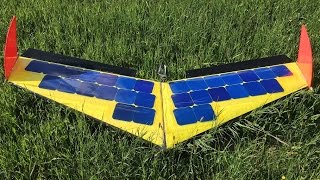

A SOLAR powered RC plane flies over 6 hours, only powered by the sun. The plane travels a distance of over 200km. It is self sufficient like the solar impulse system.
Build log: https://www.youtube.com/watch?v=rMkPjBf6dNQ
Setup:
Photovoltaic Cells:
30x Sunpower C60 125x125mm (max ETA: 22,5%)
Solar cell surface: 0,467m²
Autopilot:
Ardupilot 2.5 with Arduplane FW
Ublox GPS
Airspeed-Sensor
Voltage/Current Meter
RC:
EzUHF 4ch RC-Rx
FPV:
Mini 90° Live Cam
Minimosd
Plane:
Albatros XXL: http://www.kuestenflieger.de/modelle/albatros/index.html
Drive:
Brushless DC Motor: 4220 650kv
Hobbywing X-Rotor ESC - 20amp
Carbon folding propeller 11x10’’
4S3,6Ah 30C SLS Lipo
