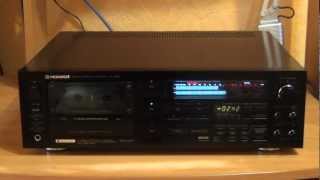

Pioneer CT - A9D

Японская кассетная дека Pioneer CT-A9D. Год выпуска аппарата 1986. Стоимость на момент выпуска составляла 145,000 йен. Спецификация: Model Reference master deck Track system 4 track two-channel stereo Head Combination (reproducing head head / laser-amorphous recording) Ferrite erase head Motor Quartz PLL DD motor × 1: Stand for live capture Coreless DC motor × 1: for reel drive Wow and flutter 0.018% WRMS (JIS) ± 0.030% W.Peak (EIAJ) Fast winding time (C-60) About 80 seconds Frequency characteristic (EIAJ) Metal tape: 25Hz ~ 22kHz ± 3dB (recording-20dB) 20Hz ~ 16kHz (Recording 0dB) Chrome tape: 25Hz ~ 21kHz ± 3dB (recording-20dB) 20Hz ~ 11kHz (Recording 0dB) Normal tape: 30Hz ~ 20kHz ± 3dB (recording-20dB) 20Hz ~ 11kHz (Recording 0dB) SN ratio 56dB (recording level EIAJ / peak, auditory sensation weighting) (3% third harmonic distortion, auditory sensation weighting) over 58dB: Dolby off Dolby B on: improved 10dB (5kHz) Dolby C on: improved 19dB (5kHz) Distortion (EIAJ/1kHz) 0.8% (a metal tape, the 3rd THD) Input sensitivity / impedance Line: 63mV/100kΩ Output Level / Impedance (Maximum output volume) Line: 0.63V/7kΩ Headphone: 0.45mW/8Ω Supply voltage AC100V, 50Hz/60Hz Physical Dimensions 134 × height 457 × depth 374mm width Weight 11.2kg В ролике звучит: Zaz - Les Passants
