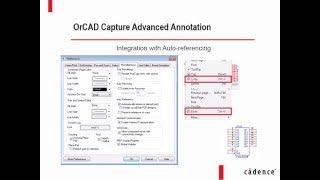

OrCAD Capture 17.2-2016 Advanced Annotation

With the newly introduced Advanced Annotation feature supported by OrCAD Capture, users can assign reference ranges hierarchically by automatically assigning values and perform annotation on the whole design, on hierarchy block at any level, page and property block, giving them complete control over their component annotation process in the design cycle.
