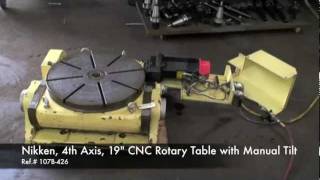

Nikken, 4th Axis, 19" CNC Rotary Table with Manual Tilt, Ref.#107B-426 (SOLD)

Nikken 4th Axis CNC Rotary Table with Manual Tilt Ref.#107B-426 Model No. NST-500 F Serial No. 2018 New 1990 This table can be tilted manually from 0 deg. (horizontal) to 90 deg. (vertical). Diameter of Table: 19.68" / 500mm Center Height in Vertical Position: 11.33" / 288mm Table Height in Horizontal Position: 11-1/4" / 285mm Rotation Speed: 5.5 RPM Indexing Accuracy: 20 Seconds Minimum Increment: 0.001 Degree Maximum Work Load in Horizontal Position: 1100 Lbs. / 500 Kg Maximum Work Load in Vertical Position: 440 Lbs./ 200 Kg Maximum Thrust Load: 1166 Nm Clamping System: Air Operated Clamping Torque: 196 Nm Overall Dimensions: 24" x 48" x 11-1/4" Weight of Table: 825 Lbs. / 375 Kg Equipped With: Fanuc Red Cap Motor Installed New in 2006. Model 5, A06B-0512-B001
