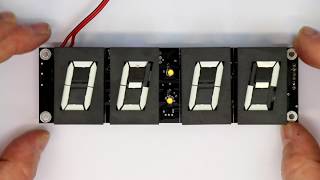

My Version of Coyt Barringer´s Flip Clock

Coyt has put the assembled PCB now for sale on both Tindie here: https://www.tindie.com/products/LizardSystems/electromechanical-flip-clock-assembled-pcb/ and on his personal website here: https://coytbarringer.com/product/flip-display-clock-assembled-pcb/ Support Roger on Patreon: https://www.patreon.com/kainkalabs Coyt´s original post and files: http://coytbarringer.com/flip-display-clock/ Additional BOM, HEX-Files, fuse-setting etc. https://www.kainkalabs.com/upload/index.php?f=15b60eafb2c2c1 Some additional remarks for self-assembly: you should be familiar with SMD-soldering (0604, 0402 size components) and component identification from the original PCB-files/schematic and tracing them out. Otherwise you will certainly fail. There are quite a lot of components to identify and solder onto the PCB (more than 100).
