Modal analysis of ultrasonic transducer

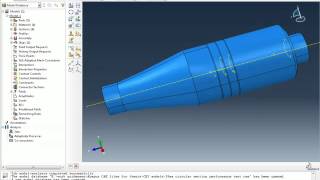

Modelling of ultrasonic transducer using Abaqus FE code, the modelling is started by creating parts, defining materials, particularly piezoelectric material, creating sections and assigning these sections to the parts, assembling the parts, defining interactions between these parts, creating steps and defining boundary conditions, load and finally creating meshing and applying the job.
