MAZAK VORTEX 1060 V/8S

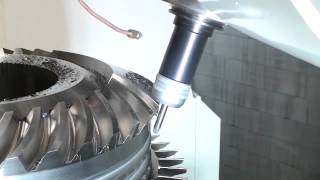

NOTE: This video does not feature sound. For more information: http://www.mazakusa.com/productpage.asp?lngEquipID=27 The VORTEX vertical machining center is a highly productive vertical machining center that processes large, complex components, measuring up to 59.06" (1,500 mm) in diameter, 57.09" (1,450 mm) high and weighing up to 6,614 lbs., in single setups. Its single table design provides cost-effective, efficient machining and requires minimal floor space. Ideal for the aerospace and construction machinery industries, the VORTEX 1060V/8 Single provides simultaneous 5-axis surface contouring with a powerful 50 taper, 50 hp (37 kW) tilting spindle that delivers maximum speeds of 10,000 rpm for achieving extremely high metal removal rates. An optional 5,000-rpm spindle that generates up to 368.8 ft-lbs. of torque for heavy-duty cutting is also available. Speed and productivity are further increased through the machine's fast rapid traverse speeds of 1,654 ipm (60 m/min) as well as its large 80-tool magazine.
