LM3914 vs LM3915 vs LM3916 - Differences and Uses + Electric diagram - By STE
У вашего броузера проблема в совместимости с HTML5
SUBSCRIBE is Free!
PCB: https://youtu.be/7avb905F-MQ

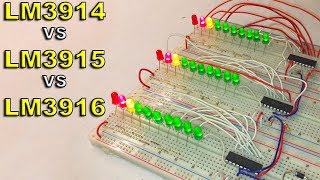

In this video, the three ICs (LM3914 - LM3915 - LM3916) are compared... and what will be the best to realize a Vu-Meter?
The main differences between these ICs are:
• The LM3914 is a linear display.
• The LM3915 is a 3db increments logarithmic display.
• The LM3916 is a VU-Meter display. (-20 to +3db)
And from this we deduce that:
The LM3914 is typically used to create a voltage display using 10 LEDs, while the LM3915 and LM3916 are typically used to display audio signal using 10 LEDs... And now that I've explained everything to you, SUBSCRIBE =)

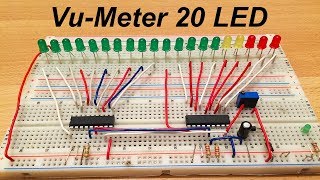

► My best Vu-Meter on Breadboard: https://youtu.be/Ex3waFdQrHY
