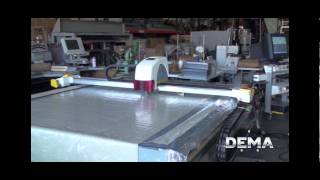

Investronica Sapphire CV020 Automated Cutting Machine

Dematron automation has a large selection of industrial sewing machines. For more information please contact us www.demasewingautomation.com or call 1-888-492-5553 Capacity 20 mm. Axes X and Y: Speed: Cutting speeds selected from control screen up to a maximum speed of 0,8 m/s (no load 1 m/s). Configurable from functions menu up to a maximum of 7 m/s. Acceleration m/s. Resolution: 0,02666 mm/pulse in axis X. 0,02336 mm/pulse in axis Y. S15 Head. Maximum cutting height 19 mm. Compressed fabric. Cutting motor speed programable up to 9000 rpm. Resolution 3000 pulses/rev. in axis Z. Table CU7 Useful cutting width 1600 mm. Conveyor forward speed: 3 selectable and programmable speeds up to a maximum of 0,25 m/s. Conveyor acceleration 0,1 m/s. Resolution 0,0996 mm/pulse. Cutting window 2000 mm (for drilling cut 1900 mm.) Voltage 380 V 10 three-phase. 50 Hz. 3 KVA. Cutting table dimensions: 2090 x 1670 x 870 mm. Machine dimensions. 4540 x 2400 x 1270 mm. Serial No. CU71012000CJ. Independent suction system included. Control system: Microsoft Windows 2000. 5.00.2195. Computer x86 Family 6 model 8 stepping 6. AT / AT COMPATIBLE. 130.544 KB RAM. Software INVESMARK FUTURA 7.5 V8R1 (PGS – MGS – WBM + M – INVESCUT PILOT).
