INTEGRATO Leveller - Italiana Ferramenta

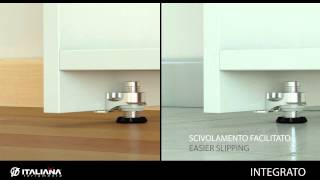

INTEGRATO is the new leveller suitable to align heavy duty wardrobes, bookcases and modular furniture. The leveller is installed and safely fixed onto the bottom of the carcase through a wide range of supports complete with pins and screw holes, spikes and screw holes or again screw holes only. A further securement in position can be obtained by a countersunk 4x18mm length screw from underneath first and also 2 panhead 4x15mm length screws from the side secondly if required. A Ø 8mm through hole in the furniture bottom, allows to adjust the leveller from the above, by using a S6mm allen wrench or both cross and blade screwdriver. The zinc alloy die-cast foot, is provided with an indipendent engineering plastic glide in order to make the adjustment easier and to prevent the scratching of the floor too. Over the leveller can be slotted a spacer to give a structural support to the furniture bottom. The spacer is available in three heights (see the related page). Capable of supporting a 175kg load each. 12mm adjustment 25mm adjustment
