Inserting Panels, Enclosures and Rails V7R2

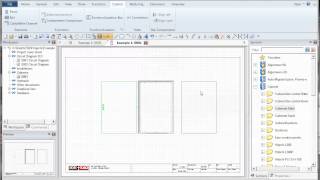

Create a cabinet page in SEE Electrical V7R2 then insert a panel either from the supplied symbol databases or using the functions - panel command. Using space to prompt for exact X and Y dimensions with dynamic panels and graphical boxes. Insert DIN rails and trunking using SEE Electrical cabinet commands. Functions available in the cabinet module available for standard and advanced versions.
