HY-DIV268N-5A Stepper Motor NEMA 23 with Arduino mega / UNO - zonemaker.com

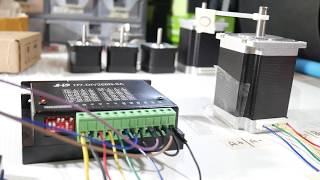

#zonemaker HY-DIV268N-5A → https://goo.gl/93rs3x Arduino SKetch → https://goo.gl/QxM1EH This video is about HY-DIV268N-5A CNC Single Axis TB6600 0.2A to 5A Two Phase Hybrid Stepper Motor Driver Controller HY-DIV268N-5A is is a PWM chopper-type single-chip bipolar sinusoidal micro-step stepping motor driver. 2-phase bipolar-type stepping motor can be driven by only clock signal with low vibration and high efficiency. Suitable for drive Two-phase stepping motor dynamic voltage 12V to 48V, the maximum drive current is less than 5A and having outer diameter of 35 to 86 mm. This drive uses the current loop subdivision control, the motor torque ripple is very small, low-speed running is very smooth. High-speed torque is much higher than other two-phase drives, high positioning accuracy. Widely used in the engraving machines, CNC machine tools, packaging machinery and other high resolution requirements on the device. NEMA17, NEMA23, NEMA24 and NEMA34 stepper motors work perfectly with this HY-DIV268N-5A Stepper Driver.
