How to Crimp TNC Female Connector using Crimping tool

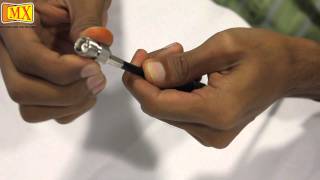

MX TNC Plug Connector is coaxial RF connectors. It is used to connect the panels. MX TNC (threaded Neill-Concelman) connector is a threaded version of the BNC Connector. The connector has 50 OHMS impedance and operates best in the 0 --11 GHz frequency spectrum. MX TNC has better performance than the BNC connector at microwave frequencies. MX TNC connector has been employed in a wide range of radio and wired applications. To Crimp TNC Female Connector You Require RG58 Cable Stripping Tool Crimping Tool TNC Female Connector Step1: Insert The Boot & Crimping Ring Over The Cable Before Striping It. Step2: Strip The Cable According To The Length Of Connector. Step3: Strip The Center Core of Cable According To Tip's Length. Step4: Insert The Tip & Solder It For Better Performance. Step5: Crimp The Connector. Product Link: http://mdrelectronics.com/tools.asp Please subscribe to our YOUTUBE Channel: MX Electronics (MDRElex) You can also Like our Facebook Page: http://www.facebook.com/mxelectronics This video is a complete guide, however if you have any questions feel free to comment or send us an email on [email protected] or visit our website www.mdrelectronics.com If You Have Any Complaints, Queries Or Suggestions, Call Us On (022) 4253 6666 Or You Can Mail Us At [email protected]
