gravure printing

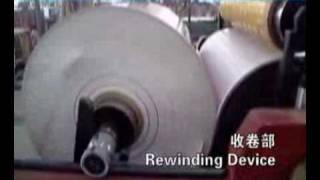

The rotogravure press integrates high speed printing and high yield, It adopts combination rotogravure printing mode the printing width is 750mm, mechanical speed 150m/min and it is ideal printing equipment for paper material.In development and design, the press extensively adopts new technology and new process so that its performance and reliability have been greatly enhanced. Fully consider the features of paper printing and latter manufacturing procedure, the double working position unwinder non-stop roll-fed system, auto paper roll receiving device and non-stop rewinding device are designed to assure high efficiency operation of machine in the whole working process. Main Technical Parameters: Roll Surface Width 800mm Printing Width 760mm Printing Diameter φ140-φ280mm Max.Unwinding Diameter φ1500mm Unwinding Mode φ1500mm Max.Rewinding Diameter Double Working Position Auto Unwinder Rewinding Mode Non-stoppage Winding Printing Mode Rotogravure Printing Printing Color Unit Eight-unit Working Speed 80m-150m/min Total Power 360KW
