GENERATIVE SHEET METAL DESIGN CATIA I ASSIGNMENT 1 I PART-1

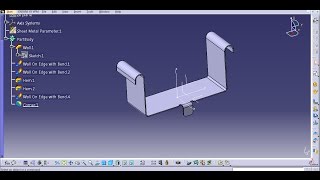

GENERATIVE SHEET METAL DESIGN I ASSIGNMENT 1 I PART-1 1. Set the sheet parameters i.e thickness and bend radiuS 2.While doing sheet metal modelling, you should start drafting as well side by side.. As dimensions in sheet metal can be mistakely taken, it is easy to give exact dimension with using drafting.. After adding one by one flange it is necessary to check the dimensions in drafting.. because later it becomes very difficult to change the dimensions at that particular/certain flange. 3. Provide Relief for the flanges which are created in between. 4. Creating Hem Thanks for watching Please subscribe for more videos.
