GECAM: PIPE NOTCHING MACHINE

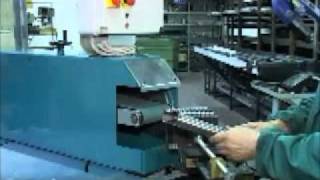

GECAM MOD:133 -NOTCHING MACHINE FOR MORE INFORMATION PLESE CONTACT US ON [email protected] +39 0521 798353 This notching machine is a real machine tool for executing notches on tubes or drawn of different shapes and dimension, long or very short such as threaded splicing sleeves. It can work on pieces with minimum radius of R=10 and maximum radius of R=150; round pieces up to D.150, rectangular and squared ones up to mm. 150x150 with coupling angles from 0° to 75°. The trolley unit, adjustable in every direction, permits the execution of notches displaced from the middle of the piece, in addition to the work course inclination, in this way allowing to use all the width of the belt, extending its useful life; this produces major heat dispersion on the abrasive belt and a remarkable reduction of the tube's burr.. It works on steel or hard rubber (90 Sh) contact wheels placed on only two types of support forks able to cover the whole range of diameters. For special diameters, the deliberately simply contact wheels can be built directly by the user avoiding in this way useless waiting times;
