Carb Information - Thumpstar (19mm Mikuni, 30mm PZ30 and Oko Flat Side 24mm)

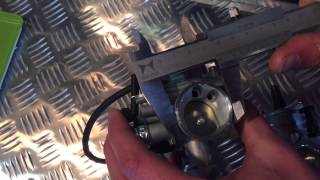

Mikuni 19mm – (70cc, 90cc and 110cc motors) – Measurement: manifold side: 19mm; bolt distance (eye to eye): 48mm; length from the bottom to the top: 14.5cm; width: 9cm; from center of the eye to the bottom of the bolt: 6cm; weight in grams: 543grams. Mikuni PZ30 (140cc to 160cc motors) – Manifold side: 30mm; bolt distance: 48mm; length from the bottom to the top where the cable goes in: 16.5cm; width including the choke: 10cm; diameter: 44mm. 3mm air filter will fit Oko flat side – (125cc to 140cc motors) – race carburettor. Tune this right up and get more performance on your bike. 24mm carb. Length from the bottom to the top: 15.5mm; width: 7cm Websites http://www.thumpstar.co.nz/ http://www.thumpstar.com.au/ Facebook - https://www.facebook.com/thumpstarmoto Instagram - https://www.instagram.com/genuinethumpstar Please note this is a information video linked to our website to help customers when purchasing parts, its not a tech video.
