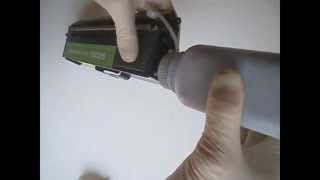

Brother HL4150 TN310 TN315 TN320 TN325 TN345 Refill Toner

How to remanufacture and reset toner cartridge Brother TN-310 TN-315 TN-320 TN-325 TN-328 TN-340 TN-345 TN-348 TN-390 TN-395 for HL-4140CN HL-4150CDN HL-4570CDW MFP-9460CDN MFP-9560CDW MFP-9970CDW AMERICA TN310 Black 2,500 pages TN310 Cyan/Magenta/Yellow 1,500 pages TN315 Cyan/Magenta/Yellow 3,500 pages TN315 Black 6,000 pages EUROPE TN320 Black 2,500 pages TN320 Cyan/Magenta/Yellow 1,500 pages TN325 Black 4,000 pages TN325 Cyan/Magenta/Yellow 3,500 pages TN328 Black/Cyan/Magenta/Yellow 6,000 pages ASIA & OCEANIA TN340 Black 2,500 pages TN340 Cyan/Yellow/Magenta 1,500 pages TN345 Cyan/Yellow/Magenta 3,500 pages TN348 Black/Cyan/Yellow/Magenta 6,000 pages JAPAN TN390 Black 2,500 pages TN390 Cyan/Yellow/Magenta 1,500 pages TN395 Black 4,000 pages TN395 Cyan/Yellow/Magenta 3,500 pages When the printer receive a new toner cartridge, the printer bias voltage is set to high and the cartridge page count is reset to zero. As the cartridge is used, the bias voltage is gradually reduced. This is because a new toner cartridge has a tendency to print light. So, to keep the toner cartridge density level even throughout its life, the density bias voltage is reduced accordingly. Different yield cartridges have different stages set for the bias voltage. That’s why there are different reset gears, and that’s why is important to reset the cartridge when you refill the toner. The cartridge yield is based on the revolutions of the developer roller. the bigger the print job, the better the yield. Things needed: - Screwdriver - Toner for Brother HL-4150 Hot to print a Printer Setting Pages: With the printer READY, press “OK” button 3 times The display show “Print Settings/Printing” RESETTING THE TONER CARTRIDGE FROM SIDE PANEL MAKE ATTENTION: if they go into the wrong menu and press the wrong buttons, you can damage to the printer. - Open the front cover. - Press SECURE and CANCEL buttons at the same time.“Reset Menu” appear on the display. - Press “up” or “down” arrows to select the cartridge you have to reset. - Press OK. - When the message “Up Arrow Reset Down Arrow Exit” appears on the display, press the up arrow button. - Close the front cover. The cartridge is reset. Repetitive Defects: Developer roller: 30.0 mm Drum: 94.0 mm Upper fuser roller: 78.5 mm Lower fuser roller: 78.5 mm For any question or suggestion leave a comment -------------------------------------------- Link Accessori srl Via Beverara 224/7 40131 BOLOGNA (Italy) http://www.linkaccessori.it email: [email protected] other links: http://www.emmegiricambi.it/ http://www.brother.com/html/download/index.htm -------------------------------------------------------------------------
