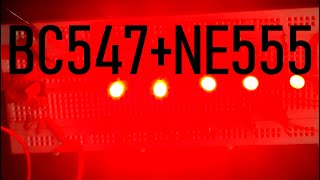

In this video we are going to make an LED chaser circuit using BC547 transistors and 555 timer IC.
We will be doing this project using some BC 547 transistors and 555 timer IC.Here we have made a 5 channel LED chaser circuit,you can increase or decrease the number of LEDs according to your need.We are using BC547 transitors with a capacitor to turn on the LEDs in a sequential manner and the 555 timer IC is used as an astable multivibrator to keep the sequence light on and off in a circular manner.
The other way of doing this project is by using CD4017 IC in place of the BC547 transistors,click on the (i) button in the above video to watch how to make it, which we will avoid using in this video.
So to make this project we are going to need:
1----------Breadboard(https://www.utsource.net/itm/p/9221302.html)
2----------5x BC547 transistor(https://www.utsource.net/itm/p/382309.html)
3----------2x 100uf 25v capacitors(https://www.utsource.net/itm/p/6484472.html)
4----------6x 10 Kohm ,5x220 ohm,1x 2.2Kohm resistors(https://www.utsource.net/itm/p/8304001.html)
5----------5x LEDs(https://www.utsource.net/itm/p/6831354.html)
6----------1x 1N4007 Diode(https://www.utsource.net/itm/p/300046.html)
7----------connecting wires

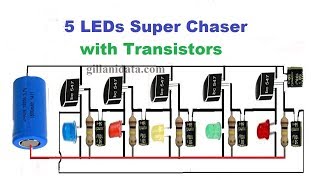

Here is the full circuit schematic:
https://drive.google.com/open?id=14mWYfqy8qNbVW-g-gnTO6Dd2QrtKOy49
