Abanaki - PetroXtractor® Belt Oil Skimmer

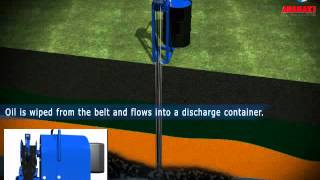

The Abanaki PetroXtractor is a dependable and cost effective means of removing oil, fuel, and other floating hydrocarbons from water where access to the fluid surface is limited. It provides efficient remediation of groundwater contaminated by oil, using existing recovery and monitoring wells. Often, the PetroXtractor Belt Oil Skimmer working alone will reduce oil or fuel content to an acceptable E.P.A. level. Models are available for two inch, four inch, and six inch or larger ID well casings, with removal rates up to 12 gph. (based on SEA 30 motor oil). Depths of 100 feet or more can be accommodated without the use of pumps. The PetroXtractor is a belt oil skimmer that makes use of the differences in specific gravity and surface tension between oil and water. These physical characteristics allow the unit's continuous belt to attract floating oil in the well. After picking up the oil, the belt travels over the head pulley on the drive unit and through tandem wiper blades. The oil is then scraped off both sides of the belt and discharged through a 1-1/4" ID hose. The unique bearing-less design of the tail pulley (immersed in the well water) with its tethered frame allows it to perform three important functions: it keeps proper tension on the belt, prevents accidental loss down the well, and keeps the belt centered in the casing. The PetroXtractor Belt Oil Skimmer can be installed in existing wells by mounting it on a flat surface above the well casing. Oil Skimmer operation consists of merely lowering the belt and tail pulley into the casing until the pulley is fully immersed, placing the discharge hose in a container, and switching the unit on. •Ideal for removal of floating oil and other hydrocarbon liquids from existing remediation or monitoring wells •Can be installed in well casings as small as 2 in. ID •Elevates skimmed oil 100 feet or more for discharge into 55 gal drum •Removes up to 12 gph of oil from water
