28 × 34 North face house plan map naksha

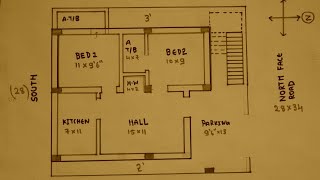

Utter disha ghar kaa naksha ground floor plan 1 stair case size 13 × 6 feet septic tank 4 × 9 × 8 landing below toilet room 3 × 6 2 parking 9'6" × 13 feet 3 bedroom 2 10 feet × 9 feet with attached toilet and bath 4 feet X 7 feet 4 bedroom 1 11 feet X 9 feet 6 inch with attached toilet and bath 3feet X 8 feet 5 hall 15 × 11 hand wash 4 × 2 6 kitchen cum dinning 7 feet X 11 feet 7 set back at West 3feet 8 at East 2 feet 9 at South no offset All dimensions are in feet and inches please consult expert before using this plan columns used 9 inch X 15 inch 8 mm stirrups 4 number of 16 mm bars 4 numbers of 12 mm bars 2 inch covering at all side fotting excavation size 4 feet X 4 feet deep depends on the hard strata of the soil
