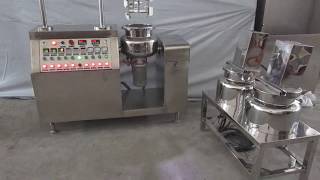

10L vacuum homogenizer mixer for cosmetic emulsiongel with high viscosity lab use
I.Overview of vacuum emulsifying machine and the machine process
vacuum emulsifying machine profiles
As the vacuum emulsification, refers to the material in the vacuum state, the use of
high shear emulsification is efficient, fast, even a phase or multiple phase distribution to
another phase, usually each phase (such as oil and water) are incompatible. The use of
machinery brought strong momentum the material is fixed, bearing, hydraulic shear,
hundreds of thousands of times per minute in the narrow gap of rotor in centrifugal
extrusion, impact the comprehensive effect of tear and rapid flow, so that the
immiscible phases in the interaction of techniques and proper additives, instant
dispersed emulsion, after high-frequency cycle, the final no bubbles, delicate and stable
High quality products.
The following is the working process of the emulsifying machine:
Ⅰ.In the rotor of centrifugal force of high-speed rotation, the material from the
upper and lower feeding area at the same time from the axial suction working
chamber.In the rotor of centrifugal force of high-speed rotation, the
material from the upper and lower feeding area at the same time from the axial
suction working chamber.
Ⅱ. In the high-speed rotation of the rotor is formed on the outer end of the
hydraulic shear strong, liquid friction, tear collision, make the
material fully dispersed, emulsifying, homogenizing, crushing, and
through the stator groove.
Ⅲ. The material continuously high speed from the radial injection, formed
under the strong turbulence, turning the two shares. Material after
several cycles, the final completion of dispersion, emulsification
process.
⑵e Use d and e scope f of application
1 1 、n main application
ZT- series vacuum emulsifying machine is based on imported equipment
comprehensive absorption, improve the development of high-grade cosmetics
and pharmaceutical production of key equipment, the equipment has a fast
homogeneous, heating and cooling and vacuum degassing and other functions,
and has good emulsifying effect of good sanitary condition, high thermal
efficiency, stable operation and reliable electrical control,
Convenient operation and maintenance, and low labor intensity. Suitable
for China, can completely replace imported equipment, is the production
of cream, cream, honey cosmetics. The ideal equipment and can be used for
the pharmaceutical, food and related products, fine chemical industry in
the production of high viscosity materials.
2 2 、e scope f of application
2.1 Daily chemical and cosmetic industry:
Skin care cream, shaving cream, shampoo, toothpaste, cold cream, sunscreen,
Cleansing Cream,
Honey nutrition, detergent, shampoo etc.
2.2pharmaceuticals industry :
Latex, emulsion, ointment (ointment) oral liquid, syrup, etc
2.3food industry:
Sauce, cheese, oral liquid, nutrition, baby food, chocolate, sugar and so
on.
2.4 chemical industry :
Latex, paste, paint, paint, soap products, resin, adhesive, lubricant.
.n Emulsification e machine l technical parameters
1. Model:YX-VME10L
2. Main pot working capacity:10L
3. Heating way :electric heating
4. Source:380V 50HZ
5. Type of probe: PT-100
6. vacuum degree:0.085Mpa
7. power of agitator :0.37KW
8. Emulsifying parameters:0.75KW
9 . Pump power:180W
